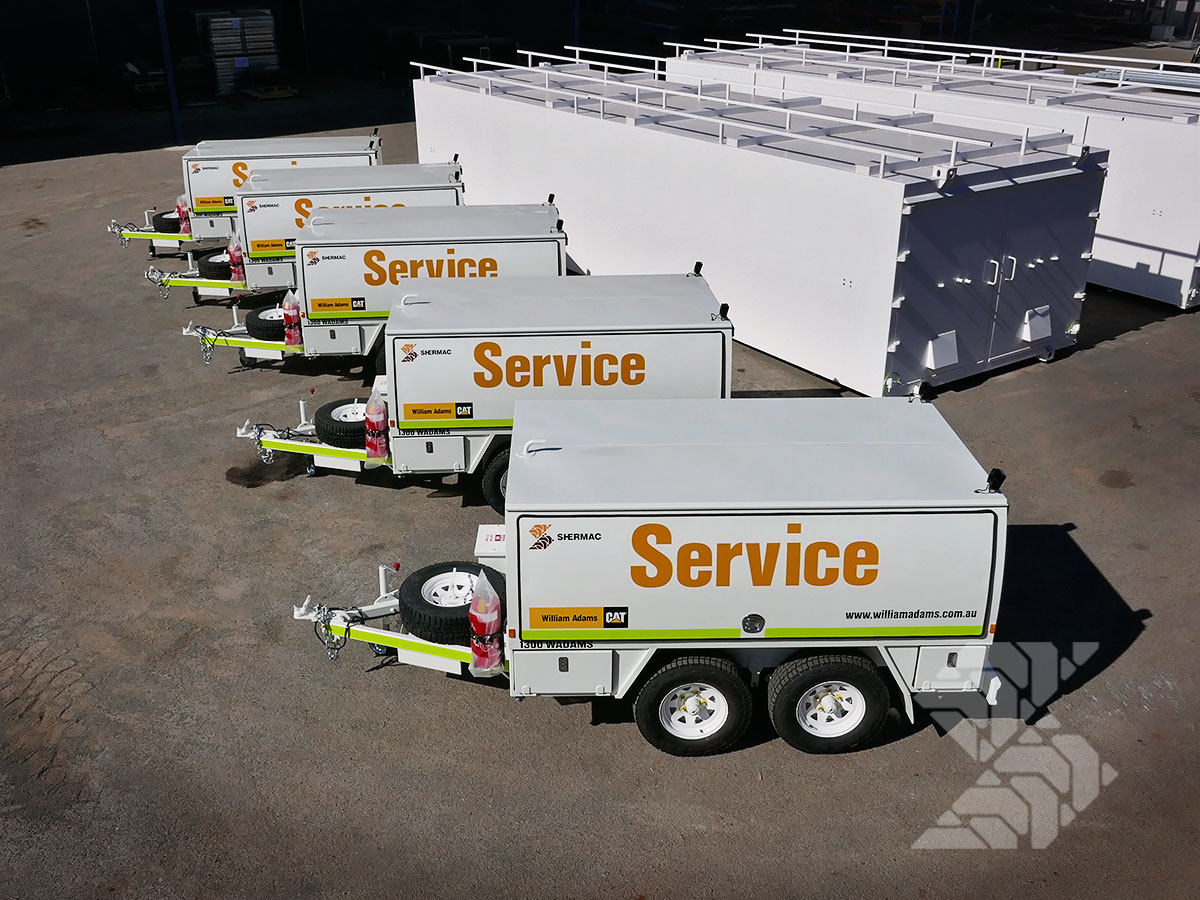

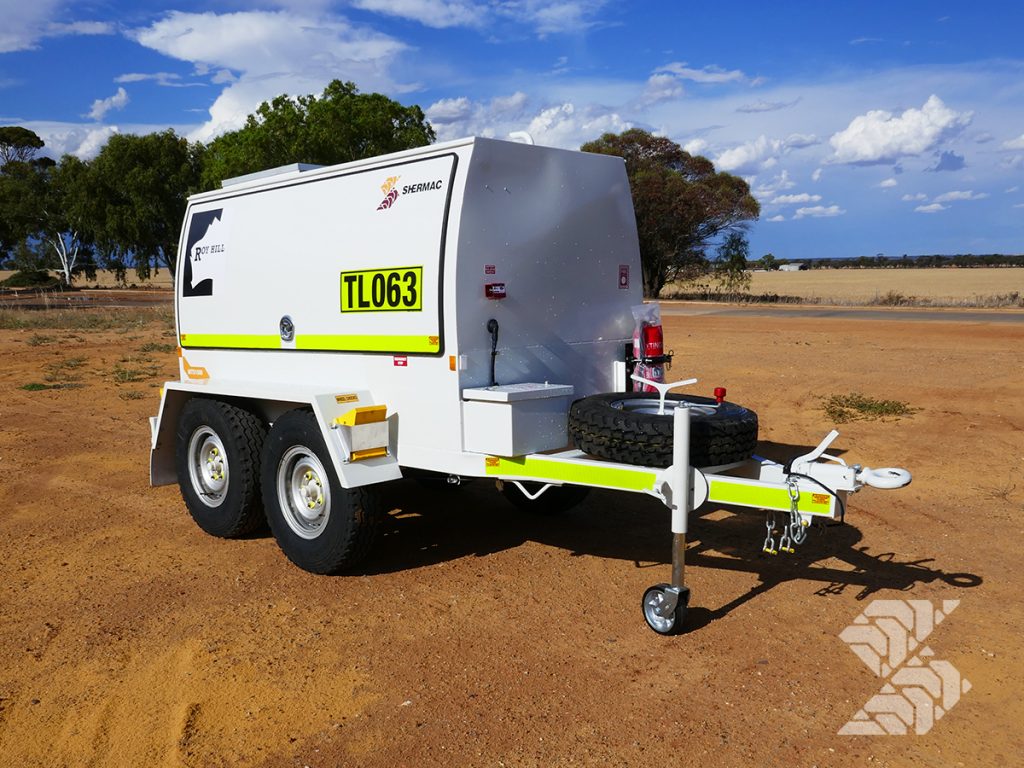

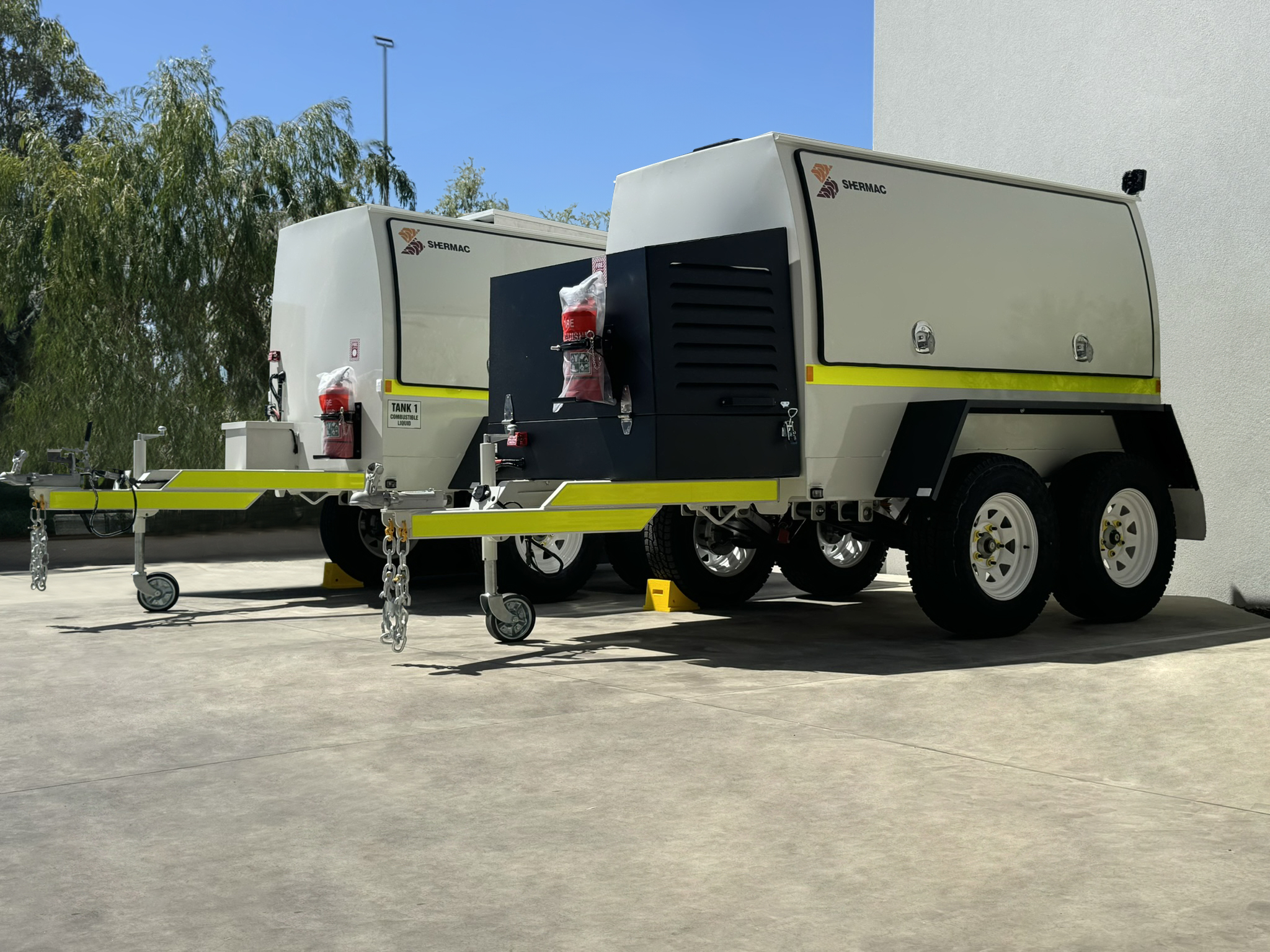

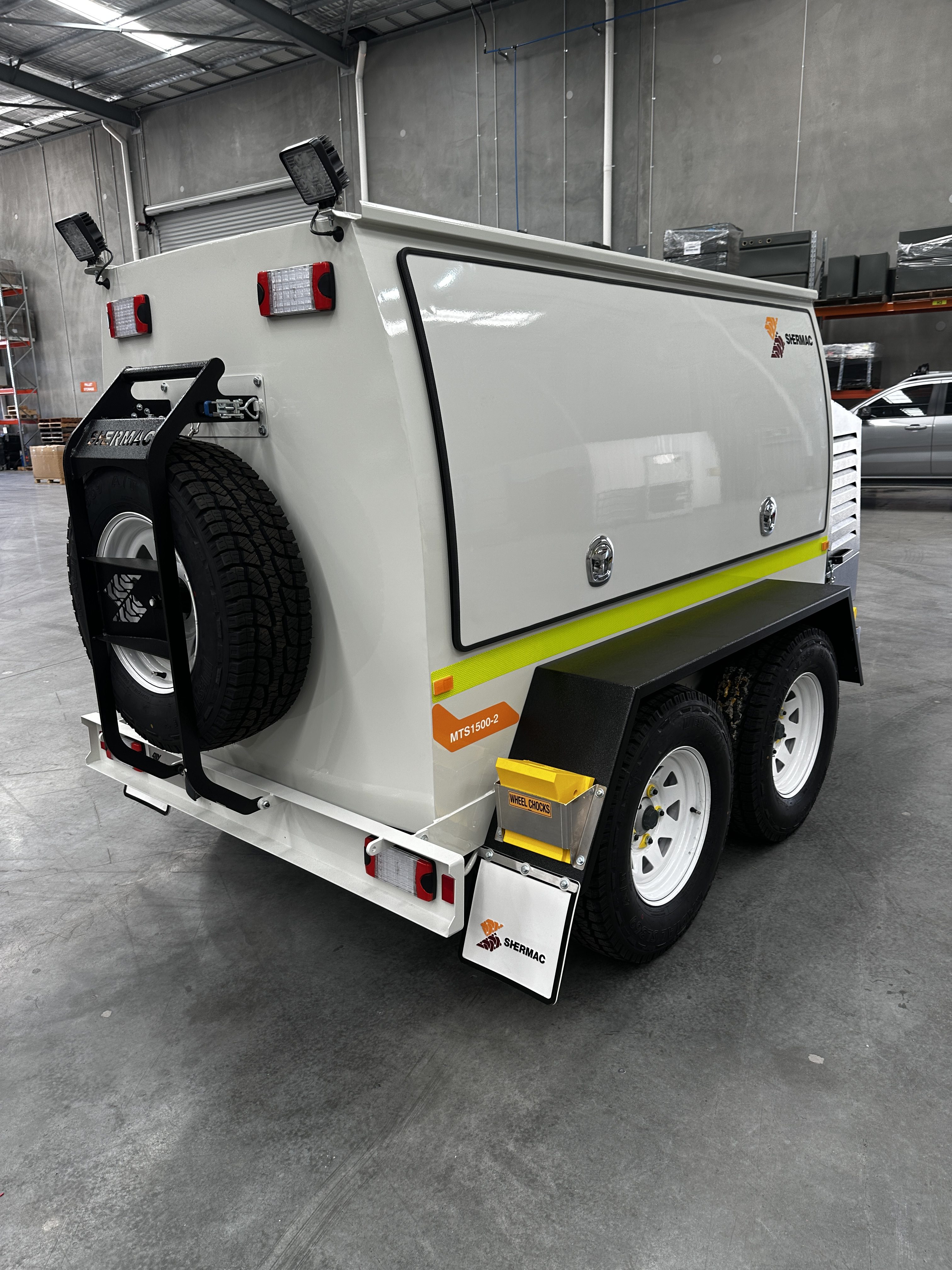

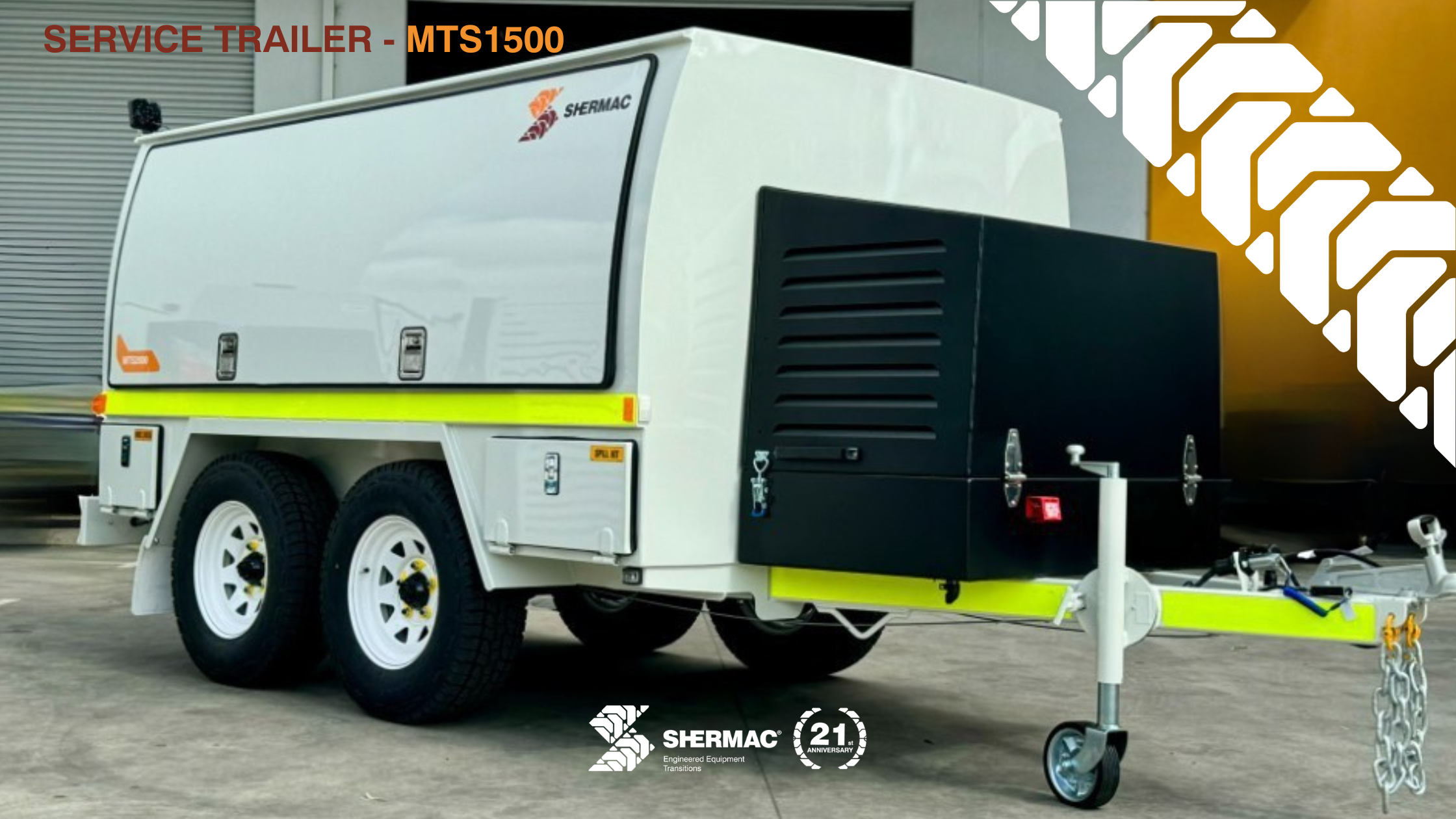

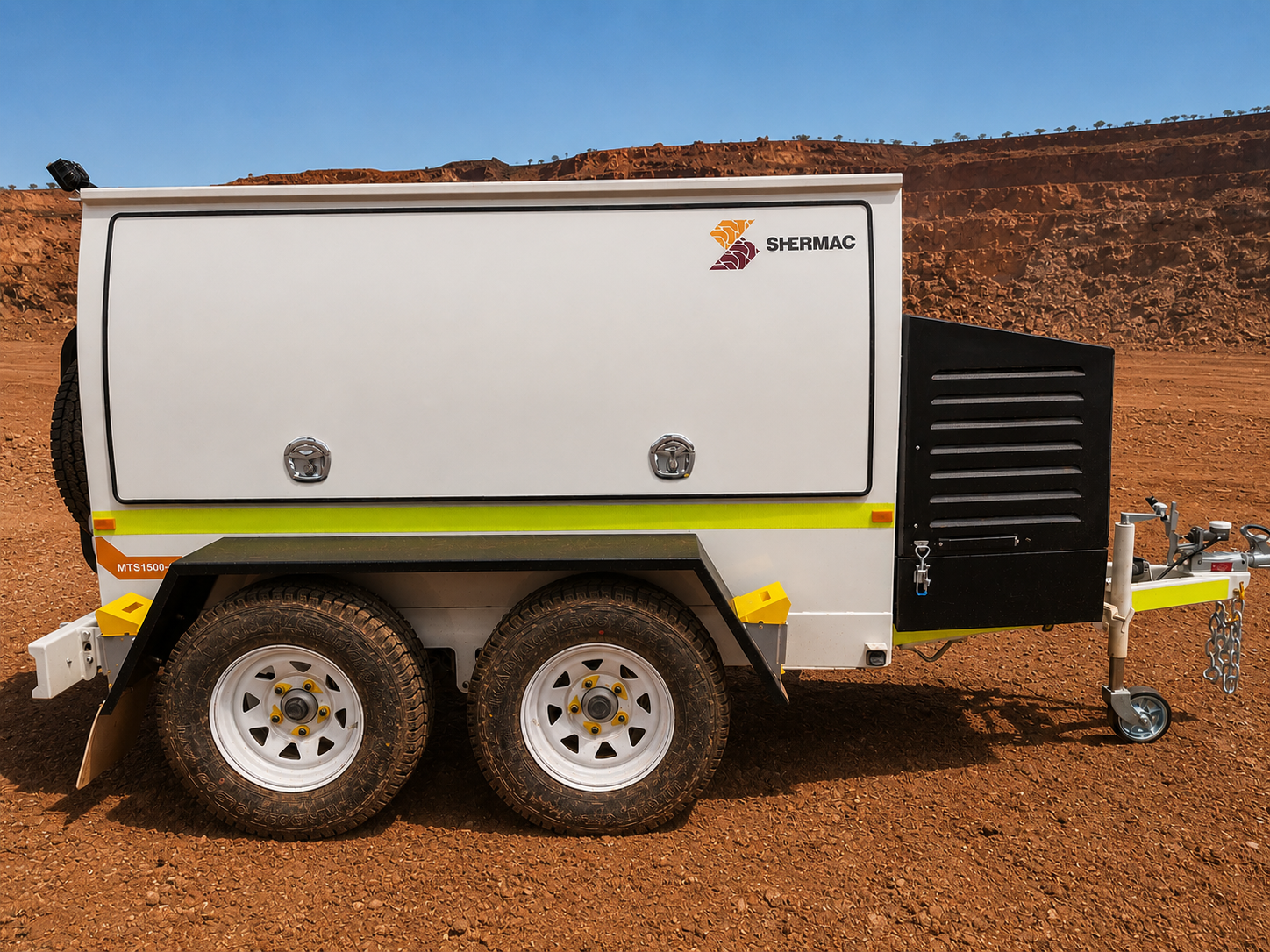

SMALL SERVICE TRAILERS

2 TONNE TO 3.5 TONNE SERVICE TRAILERS – TOUGH, SMART, SAFE, AND GREAT VALUE

If you operate machinery away from the workshop, Shermac have the solution for ensuring they function at their optimum capacity!  These long lasting, reliable, and user-friendly service trailers are built to your exact requirements, whether it be for mining, civil, or commercial use, able to be delivered anywhere across Australia and New Zealand.

  • Designed and manufactured to your specification
  • Up to 3.5 Tonne GVM
  • Self bunded
  • Mine Spec
  • Fully enclosed, providing protection from the elements, as well as large external areas for your company’s branding
  • Option of a range of power sources
  • Easily accessible and secure storage area
  • Ultimate solution for your onsite servicing and refueling needs!

Get in touch with one of our service vehicle experts about designing a service trailer solution that’s ideally suited to your operational requirements.

Further Details

Download the Service Truck Brochure here!

Specifications

Dispensing system
  • Convenient and accessible enclosed pump and reel compartment
  • One piece swing-up door providing robust security, weather protection, and shade for the operator
  • Spring rewind hose reels on all product systems
Power supply
  • Air connection at the front of the trailer to utilize the compressor on towing vehicle
  • Diesel powered compressor
  • Diesel powered generator if required
Waste fluid
  • Fitted with a waste fluids system, configured for evacuating and out-loading waste fluids direct from the machine.
  • Draining station for filters
Grease
  • Pneumatic grease pump equipped to suit 20kg grease pail.
  • 15m spring rewind hose reel.
Air compressor
  • Compressor mounted inside cabinet for security, c/w exhaust plumbed to outside, electric start, battery, isolator switch, and emergency stop.
  • 15 metre spring rewind compressed air hose reel
Trailer
  • Unit mounted to heavy duty trailer, with unique Shermac chassis design.
  • All controls, pumps, and reels enclosed in sealed lockable compartment, accessible from right side of trailer.
  • Sealed, lockable filter and parts storage compartment accessible from left side of trailer.
  • All doors keyed alike, top hinge, with gas stay supports.
  • Pintle eye hitch coupling.
  • Carlisle electric / hydraulic braking system.
  • Off road tyres on ROH rims with 5 stud Land Cruiser hub pattern.
  • Trailer inspected and licensed to 3.5 tonne gross vehicle mass.
  • Heavy duty jockey wheel on swivel.
  • LED combination tail lights
  • LED number plate light and clearance lights
Paint
  • We use a quality two-pack paint system on both internal and external finishes.
  • Fully grit blasted prior to paint application.
  • Your choice of colour.
  • Additional corrosion protection systems are available for trailers operating in highly corrosive site conditions.
Lighting
  • LED tail lights
  • LED internal strip lights
Emergency Equipment
  • 5kg or 9kg dry powder type fire extinguisher
  • 40 litre fuel and oil spill response kit
Additional options
  • Mine spec
  • Metered oil nozzles
  • Product filtration
  • Spare wheels
  • LED worklights
  • Generator
  • High pressure washer
